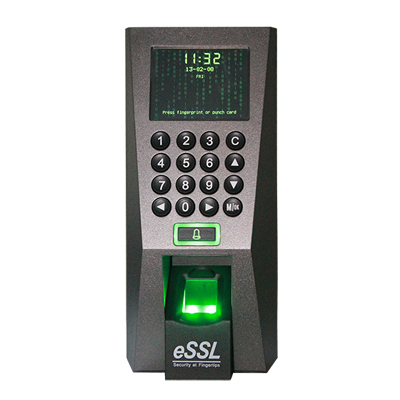

Bioteknix F18 Fingerprint Access Control System is a compact and reliable biometric device designed for access control and time attendance. Ideal for offices, schools, labs, hospitals, and secure areas, the F18 features advanced fingerprint recognition, RFID card, and password authentication. It supports up to 3,000 fingerprints and 100,000 logs, offering high-speed and accurate verification. Equipped with a TFT color display, intuitive keypad, and fast algorithm, it ensures smooth operation and user-friendly access. The F18 supports TCP/IP, RS485, and USB for easy communication and data transfer. Integrated with access control features like door lock, alarm, exit button, and door sensor, it secures your premises while tracking employee attendance. The Bioteknix F18 is a cost-effective, durable, and efficient solution that enhances security and simplifies workforce management.
| Fingerprint Capacity | 3000 |
| Card Capacity | 5000 |
| Transaction Capacity | 100000 |
| Standard Functions | DLST, Self Service Query, Status Switch |
| Power & Environment | * Power Supply : DC 12V --- 1.5Amp * Operating Temperature : 0°C - 45°C,br> * Operating Humidity : 20% - 80% * Dimension(in mm) : (L)210 x (W)157 x (H)40 * Battery : NO |
| Compatibility | * Compatible with Multi Door controllers via weigand
* External Speaker output available (Optional) * External Bulb output available (Optional) |
| Biometric | * CPU : 32 bit High End Microprocessor
* FAR : <=0.0001% * FRR : <=1% * Fingerprint sensor : 500 DPI Optical sensor * Identification speed : <0.5 sec * Algorithm Ver : 9/10 |
| Audio/Visual | * Display : 2.8" Color TFT
* LED Indicator : Green/Red * Keypad : Yes * Schedule Bell/Speaker : Mini Speaker |
| Communication | * Communication : TCP/IP,USB host
* Push data : Standard |
| Access control | * Wiegand : In & Out
* Relay : 12 V relay for lock EM lock, Bolt Lock or Strike lock * Door Sensor : Yes * Anti Passback : Yes * Door Bell : Yes |
| Compatible Software and SDK | * eTimeTrackLite desktop & web
* SDK for desktop applications * Web based Device Management application using Push data. Helps developers & integrators * Supports 3rd Party Payroll/HRMS/ERP and Other applications |
| Exit Readers | * Support exit readers : FR 1200, KR500 |
| Optional | * Battery : NO
* Card readers : Yes * Card Type : Mifare/HID Prox |
| Major Applications | Time & Attendance , Canteen Management, School Attedance, Production Management, Gym & clubs |
