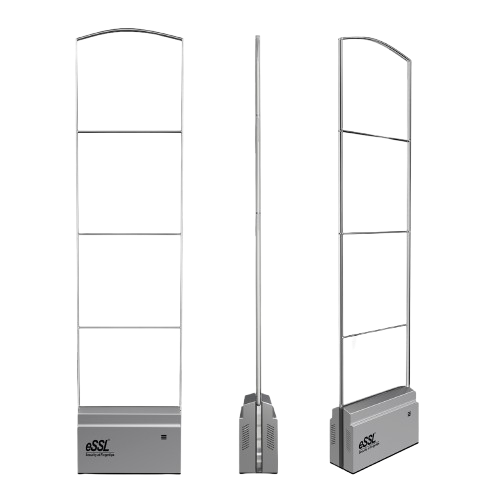

The BIOTEKNIX SMARTGUARD RF is an advanced Electronic Article Surveillance (EAS) security system designed to provide effective anti-theft protection for retail stores, supermarkets, shopping malls, apparel showrooms, pharmacies, bookstores, and commercial outlets. Built with high-performance RF technology, the system delivers reliable product detection and secure retail loss prevention management. Engineered with advanced 8.2MHz Radio Frequency (RF) detection technology, the BIOTEKNIX SMARTGUARD RF ensures accurate detection of security tags and labels while maintaining low false alarm rates for smooth customer movement and efficient store operations. The system supports both hard tags and soft labels, making it suitable for a wide range of retail merchandise including garments, electronics, cosmetics, accessories, and packaged products. The BIOTEKNIX SMARTGUARD RF features a modern transparent acrylic antenna design that enhances store aesthetics while providing strong and stable detection performance. Its durable construction and professional appearance make it ideal for modern retail environments requiring reliable security monitoring with elegant installation design.
| Frequency | 8.2MHz |
| Mainboard | RF mono/RF Dual Board |
| Material | Acrylic |
| Frame Color | Transparent |
| Dimension | 1580*360*20mmc |
| Packaging | 1610*450*150mm |
| Net / Gross weight | 20KG (1pcs) |
| Operating Voltage | 110 ~ 220V |
| Power Consumption | TRx Antenna: 30W ,Tx Antenna: 15W ,Rx Antenna: 15W |
| Wiring | 3 loops |
| RF Label Tag Detection Range 2 antennas | 1.2M - 1.5M |
| RF Hard Tag Detection Range | 1.5M - 2.0M |
| Base Cover | Customized |
| Net / Gross weight | 20KG (1pcs) |
| Packaging | 1610*450*150mm |
| Operating Voltage | 110 ~220 Vac |
| Dimension | 1580*360*20mmc |
| Work Rate of Each Antenna | Mono 30W, Dual 25W, 1TX+2RX 40W |
| Output | 24 Vdc 3A |
| Temperature | -5°C to 50°C |
