THERMOACCESS-9

INFRARED THERMOMETER ACCESS CONTROL

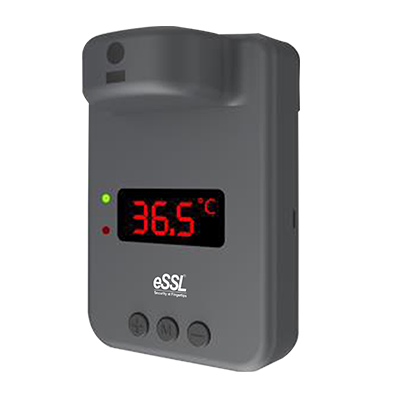

Bioteknix ThermoAccess-9 is a non-contact infrared thermometer with built-in access control, designed for fast and accurate temperature screening. It measures body temperature from 5–10 cm with an accuracy of ±0.2°C and delivers results in under 0.5 seconds. The wall-mounted device integrates easily with biometric and RFID systems via Wiegand interface and includes an internal relay to control door access. When a high temperature is detected, access is automatically denied, enhancing safety by preventing potentially infected individuals from entering secure areas. Operating on 5–12V DC and supporting a temperature range of 35°C to 42.9°C, it’s ideal for workplaces, schools, hospitals, and retail environments. With visual and audible fever alarms, compact design, and easy installation, the ThermoAccess-9 provides reliable, hygienic, and contactless temperature monitoring combined with access management.

Datasheet Manual

share the website to

parameters

Display Infrared LED
Accurate ±0.20C
Measuring time < 0.5s
Working voltage 112V input
Operating temperature 50C~320C
Measuring distance 5~10cm
Temp measurement range 350C~42.90C
Internal relay Yes
Wiegand input/output Yes
Alarm Yes (External Available)
Certifi¬cates CE/FCC
Size 130*90*53mm
Weight 240g
Installation Wall mounted
Features Secure your people, Secure your workplace,Optimize work efficiency with our most Secure, Accurate, Fast solution,Can be integrated with all world leading biometrics and cards readers through internationally recognized Wiegand interface.
